A Gibson Firebird Studio is one of those guitars that is recognisable before a note is played. Its offset body and long reverse-style headstock give it a strong visual identity — and they also make the correct tuner layout especially important.

This customer-owned Firebird Studio now uses a TronicalTune Type C1 Reverse system. The guitar and installation were shared with us by Blues Star Johnny W., and the finished instrument has joined the TronicalTune Guitar Hall of Tune.

Why this Firebird uses Type C1 Reverse

TronicalTune systems are matched to the physical layout of the guitar. The direction of the machine heads, their spacing and the available mounting area all matter. For this Firebird Studio, the correct match is the TronicalTune Type C1 Reverse.

The reverse configuration follows the orientation of the Firebird headstock. From the front, the guitar keeps its unmistakable silhouette. On the back, the motorised machine heads and control unit form a compact system that measures and corrects the pitch of all six strings.

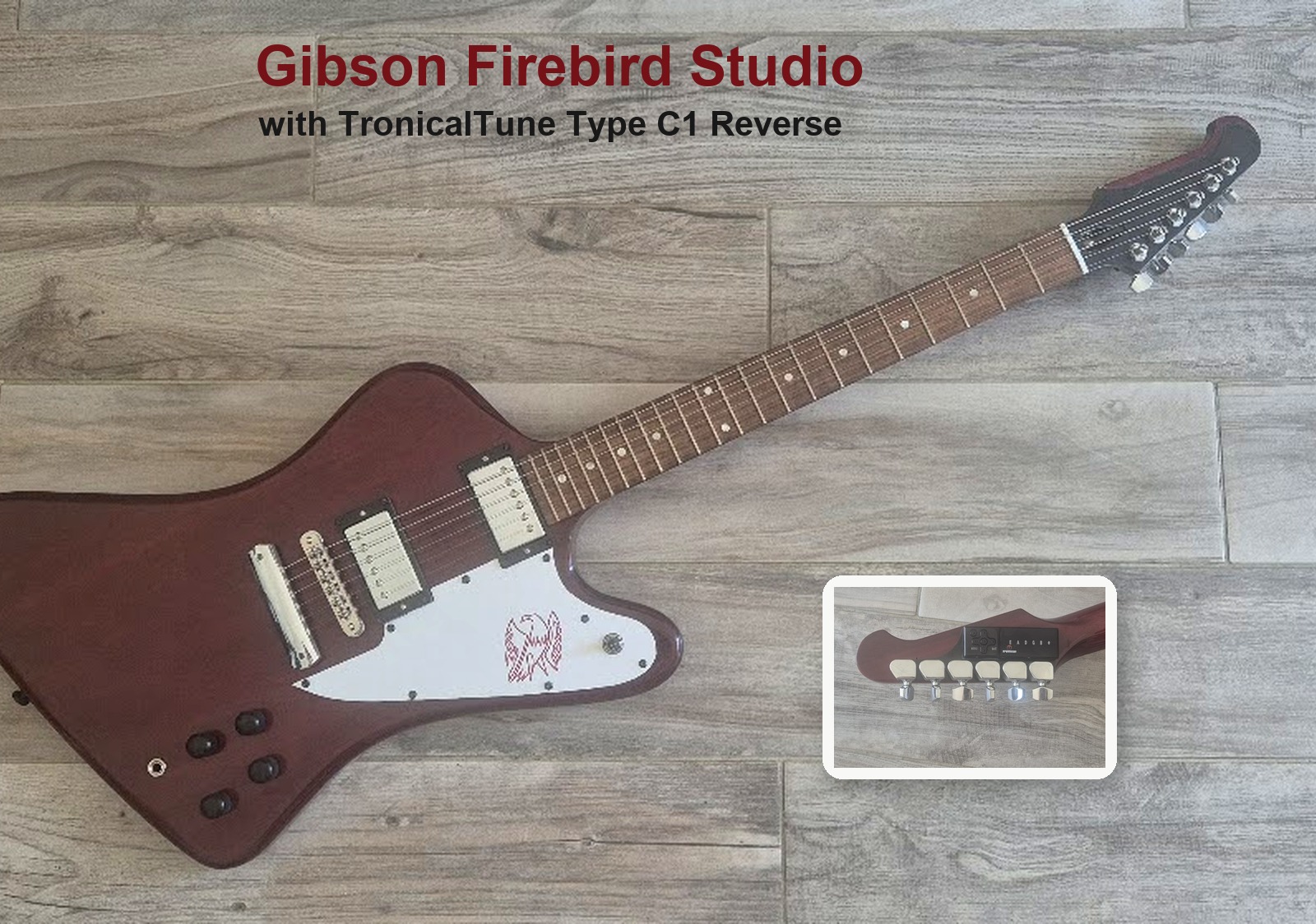

The detail photograph included in the gallery image gives a clear view of the installed tuners and controller. It is a useful reference for other players considering a similar conversion.

What the Gibson Firebird Studio installation shows

The complete view makes the proportions of the Gibson Firebird Studio easy to understand. Its body sits at one end of a long neck, while the six tuners follow the distinctive reverse headstock at the other. The Type C1 Reverse hardware works with that direction instead of forcing a standard six-in-line arrangement onto an unusual instrument.

The rear close-up is just as important as the full-guitar photograph. It shows the control unit, the six motor housings and the way the system follows the edge of the headstock. Players can compare this view with their own guitar before checking the exact measurements on the product page.

Automatic tuning without changing the guitar’s character

The Firebird has never been a conventional guitar, and that is part of its appeal. Adding automatic tuning does not change the pickups, controls or playing feel. It changes the routine that happens before and between songs.

Instead of checking and correcting each string separately, the player strums the strings and lets the system bring them to the selected tuning. The guitar remains the centre of the process: no phone is required, and there is no need to clip a separate tuner to the headstock.

This is useful when moving between rehearsal, recording and live performance. It can also make alternate tunings more practical. A tuning idea is much easier to try when returning to standard tuning is quick and repeatable.

For a player who uses the Gibson Firebird Studio on stage, that repeatability can remove a small but distracting job between songs. For recording, it helps keep repeated takes consistent. The benefit is not that the guitar needs less care; it is that routine tuning corrections take less time and can be repeated directly from the instrument.

A closer look at real customer installations

Product photographs explain what a system contains. Customer photographs answer a different question: what does it look like on an actual guitar? That is the purpose of the Guitar Hall of Tune.

The gallery brings together production guitars, unusual models and personal instruments fitted by players around the world. Johnny’s Firebird adds another useful example for anyone researching reverse headstocks or a C1 Reverse installation.

Check compatibility before choosing a system

Similar-looking guitars can use different tuner spacing or mounting dimensions. Always confirm the layout before ordering. Start with the TronicalTune compatibility list, then compare the measurements and orientation shown on the Type C1 Reverse product page.

To understand the tuning process itself, see how TronicalTune measures the strings and moves the machine heads.

Thank you to Blues Star Johnny W. for sharing the Firebird Studio and allowing us to feature it on the website.
